kubernetes-1.20 ingress-nginx 配置案例
一、基础概念和背景
技术背景：
k8s的service资源类型负责处理四层负载，解决了pod漂移问题，但是随着服务的增多，nodeport的方式会导致要配置使用很多的端口，进而出现端口管理维护的问题，最初就有了使用nginx来代理端口访问的处理方案，通过nginx做反向代理，可以无需使用过多的宿主机端口，但是将nginx部署在pod中运行的话，后续服务以及域名的变更配置会要求频繁的修改nginx配置文件，为了进一步解决问题，这才有了Ingress Controoler ，通过与 Kubernetes API交互，动态的去感知集群中 Ingress 规则变化，然后读取他，按照他自己模板生成一段 Nginx 配置，再写到 Nginx Pod 里。
案例需求：
通过http或者https的方式,配合ingress-nginx以不同的url后缀区分访问k8s中部署的服务。
本次案例搭建的测试应用服务为kunpeng search 和 metabase。
1.1、ingress
- ingress服务：指的是k8s中的一个api对象，一般用yaml配置。作用是定义请求如何转发到service的规则，可以理解为配置模板。
ingress 是一个API对象，和其他对象一样，通过yaml文件来配置，作用是定义请求如何转发到 service 的规则
ingress 通过 http或https 暴露集群内部 service，给 service 提供外部URL、负载均衡、SSL/TLS能力以及基于host的方向代理
ingress-controller 是具体实现反向代理及负载均衡的程序，对 ingress 定义的规则进行解析，根据配置的规则来实现请求转发
ingress 要依靠 ingress-controller 来具体实现以上功能
官方解释：入口|Kubernetes
1.2、ingress-controller
- ingress controller：具体实现反向代理及负载均衡的程序，对ingress定义的规则进行解析，根据配置的规则来实现请求转发。
ingress-controller 并不是 k8s 自带的组件，实际上 ingress-controller 只是一个统称，用户可以选择不同的 ingress-controller 实现，目前，由 k8s 维护的 ingress-controller 只有google云的 GCE 与 ingress-nginx 两个，其他还有很多第三方维护的 ingress-controller，具体可以参考官方文档。类似的还有：Traefik、HAProxy、Istio.
但是不管哪一种 ingress-controller，实现的机制都大同小异，只是在具体配置上有差异。一般来说，ingress-controller 的形式都是一个 pod，里面跑着 daemon 程序和反向代理程序。daemon 负责不断监控集群的变化，根据 ingress 对象生成配置并应用新配置到反向代理，比如 nginx-ingress 就是动态生成 nginx 配置，动态更新 upstream，并在需要的时候reload程序应用新配置。本例子以 k8s 官方维护的 nginx-ingress 进行演示
官方解释：入口控制器|Kubernetes
简单来说，ingress-controller才是负责具体转发的组件，通过各种方式将它暴露在集群入口，外部对集群的请求流量会先到ingress-controller，而ingress对象是用来告诉ingress-controller该如何转发请求，比如哪些域名哪些path要转发到哪些服务等等。
二、ingress-controller部署
这里选用kubernetes/ingress-nginx作为ingress-controller进行部署
部署参考官方文档，使用官方提供的yaml文件进行部署，文件中有2个镜像是国内网络无法拉取的需要提前单独拉取下来并修改yaml文件中的进行镜像标签
2.1、下载deploy.yaml模板
首先进入官方项目仓库查看需部署的对应版本
Support Versions table
| Ingress-NGINX version | k8s supported version | Alpine Version | Nginx Version |
|---|---|---|---|
| v1.1.3 | 1.23, 1.22, 1.21, 1.20, 1.19 | 3.14.4 | 1.19.10† |
| v1.1.2 | 1.23, 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.1.1 | 1.23, 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.1.0 | 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.0.5 | 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.0.4 | 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.0.3 | 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.0.2 | 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.0.1 | 1.22, 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v1.0.0 | 1.22, 1.21, 1.20, 1.19 | 3.13.5 | 1.20.1 |
| v0.50.0 | 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v0.49.3 | 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v0.49.2 | 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v0.49.1 | 1.21, 1.20, 1.19 | 3.14.2 | 1.19.9† |
| v0.49.0 | 1.21, 1.20, 1.19 | 3.13.5 | 1.20.1 |
| v0.48.1 | 1.21, 1.20, 1.19 | 3.13.5 | 1.20.1 |
当前环境k8s版本为1.20 这里选用的ingress-nginx版本为v1.1.2
进入对应版本源码目录下载deploy.yaml文件
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.1.2/deploy/static/provider/cloud/deploy.yaml
2.2、修改yaml替换镜像
查看yaml文件找到image 标签拉取的镜像分别有
k8s.gcr.io/ingress-nginx/controller:v1.1.2
k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1
由于网络原因国内拉取不到该镜像，可以从阿里云镜像仓库单独获取
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.1.2
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.1.2 nginx-ingress-controller:v1.1.2
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1 kube-webhook-certgen:v1.1.1
接下来修改yaml文件替换docker镜像，并修改其他配置，修改处查看diff
[root@ecs-1213 shilitao]# cat diff.log
--- ingress_deploy_bak.yaml 2022-04-02 10:02:18.563209218 +0800
+++ ingress_deploy.yaml 2022-04-01 16:22:08.866556657 +0800
@@ -380,7 +380,7 @@
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/name: ingress-nginx
- type: LoadBalancer
+ type: NodePort
---
apiVersion: v1
kind: Service
@@ -457,7 +457,7 @@
fieldPath: metadata.namespace
- name: LD_PRELOAD
value: /usr/local/lib/libmimalloc.so
- image: k8s.gcr.io/ingress-nginx/controller:v1.1.2@sha256:28b11ce69e57843de44e3db6413e98d09de0f6688e33d4bd384002a44f78405c
+ image: nginx-ingress-controller:v1.1.2
imagePullPolicy: IfNotPresent
lifecycle:
preStop:
@@ -477,9 +477,11 @@
name: controller
ports:
- containerPort: 80
+ hostPort: 80
name: http
protocol: TCP
- containerPort: 443
+ hostPort: 443
name: https
protocol: TCP
- containerPort: 8443
@@ -561,7 +563,7 @@
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1@sha256:64d8c73dca984af206adf9d6d7e46aa550362b1d7a01f3a0a91b20cc67868660
+ image: kube-webhook-certgen:v1.1.1
imagePullPolicy: IfNotPresent
name: create
securityContext:
@@ -617,7 +619,7 @@
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1@sha256:64d8c73dca984af206adf9d6d7e46aa550362b1d7a01f3a0a91b20cc67868660
+ image: kube-webhook-certgen:v1.1.1
imagePullPolicy: IfNotPresent
name: patch
securityContext:
除了修改容器标签还要修改ingress-nginx-controller的service中的类型为NodePort或者ingress 使用到物理机的80/443 端口,所以增加hostport相应配置,两种方式都可以实现访问，这里为了演示都进行了配置。
2.3、修改完成后部署
[root@ecs-1213 nginx]# mv deploy.yaml ingress-nginx-controller.yaml
[root@ecs-1213 nginx]# kubectl apply -f ingress-nginx-controller.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
serviceaccount/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
configmap/ingress-nginx-controller created
service/ingress-nginx-controller created
service/ingress-nginx-controller-admission created
deployment.apps/ingress-nginx-controller created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created
ingressclass.networking.k8s.io/nginx created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
[root@ecs-1213 nginx]# kubectl get all -n ingress-nginx
NAME READY STATUS RESTARTS AGE
pod/ingress-nginx-admission-create-dp5gd 0/1 Completed 0 36s
pod/ingress-nginx-admission-patch-w4c5f 0/1 Completed 1 36s
pod/ingress-nginx-controller-78d8d9f697-g6zfd 1/1 Running 0 36s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ingress-nginx-controller NodePort 10.110.248.97 <none> 80:30747/TCP,443:32755/TCP 36s
service/ingress-nginx-controller-admission ClusterIP 10.97.90.192 <none> 443/TCP 36s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/ingress-nginx-controller 1/1 1 1 36s
NAME DESIRED CURRENT READY AGE
replicaset.apps/ingress-nginx-controller-78d8d9f697 1 1 1 36s
NAME COMPLETIONS DURATION AGE
job.batch/ingress-nginx-admission-create 1/1 2s 36s
job.batch/ingress-nginx-admission-patch 1/1 3s 36s
[root@ecs-1213 nginx]#
查看资源状态运行正常即部署完成，接下来可以配置两个测试服务并配置ingress规则进一步测试。
三、部署测试应用
3.1、部署测试应用鲲鹏search的前端页面
- 应用背景：在部署环境中已经存在foliant search的服务，经过服务搭建测试也对该服务有了一定认识，根据服务之间的关系可知，foliant转换后的静态文件资源挂载在httpd的容器中可对外提供web访问，其中search页面的静态资源挂载在httpd容器中，页面中包含css和js文件，连接跳转foliant处理后的页面资源，同时连接es的索引。
nginx也可以代理静态页面资源提供http服务访问，下面将直接通过k8s部署nginx服务代理kunpeng search的静态页面作为测试应用。
- 准备部署文件
```yaml [root@ecs-1213 nginx]# cat nginx-app-svc.yaml
kind: Deployment apiVersion: apps/v1 metadata: name: nginx spec: replicas: 1 selector: matchLabels: app: nginx template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.21.6 ports: - containerPort: 80 protocol: TCP volumeMounts: - mountPath: /usr/share/nginx/html/ name: search volumes: - name: search hostPath: path: /data/shilitao/nginx/webapp_example type: Directory
kind: Service apiVersion: v1 metadata: name: nginx labels: name: nginx spec: # type: ClusterIP ports: - protocol: TCP # nodePort: 31010 targetPort: 80 #容器端口 port: 32230 #pod端口 selector: app: nginx ```
- 挂载search页面资源到容器目录，注释service中暴露端口的方式，后期使用ingress进行配置
bash
[root@ecs-1213 nginx]# kubectl apply -f nginx-app-svc.yaml
deployment.apps/nginx created
service/nginx created
将服务部署到default命名空间进行测试，部署完毕可以在内部进行访问测试服务是否正常
[root@ecs-1213 nginx]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 110d
nginx ClusterIP 10.99.139.43 <none> 32230/TCP 2m32s
[root@ecs-1213 nginx]# curl 10.99.139.43:32230
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Search</title>
<link rel="stylesheet" href="foliant_elasticsearch.css">
<script src="foliant_elasticsearch.js"></script>
</head>
<body class="foliant_elasticsearch">
<h1>Kunpeng Search</h1>
<div>
<input id="foliant_elasticsearch_input" type="text" oninput="performSearch(this.value);">
</div>
<div id="foliant_elasticsearch_total"></div>
<div id="foliant_elasticsearch_results"></div>
</body>
</html>
测试正常。
3.2、部署Metabase应用
-
应用背景：目前环境中有做好的Metabase镜像可以直接启动进行测试，默认启动使用的内置数据库，启动后可以访问服务初始化页面。
-
准备部署文件
```yaml [root@ecs-1213 nginx]# cat metabase-app-svc.yaml
apiVersion: apps/v1 kind: Deployment metadata: name: metabase2 namespace: default spec: replicas: 1 selector: matchLabels: app: metabase2 template: metadata: labels: app: metabase2 spec: containers: - name: metabase image: metabase/metabase:v0.39.4_zhai_aarch64 imagePullPolicy: IfNotPresent ports: - containerPort: 3000
apiVersion: v1 kind: Service metadata: name: metabase2 namespace: default spec: # type: NodePort selector: app: metabase2 ports: - name: http port: 32240 # nodePort: 32240 targetPort: 3000 ```
同样注释service中端口的暴露方式
```bash
[root@ecs-1213 nginx]# kubectl apply -f metabase-app-svc.yaml
deployment.apps/metabase2 created
service/metabase2 created
[root@ecs-1213 nginx]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1
[root@ecs-1213 nginx]# cat nginx_ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: nginx-app-ingress
annotations:
kubernetes.io/ingress.class: "nginx" #指定使用后端ingress controller的类别，如果后端有多个ingress controller的时候很重要
nginx.ingress.kubernetes.io/use-regex: "true" #指定rules的path可以使用正则表达式，如果没有使用正则表达式，此项则可不使用
nginx.ingress.kubernetes.io/rewrite-target: /$2 #必须重定向流量的目标 URI 正则匹配的参数，$1表示第一个()内的正则匹配内容，$2为第二个，以此类推
spec:
rules:
- host:
http:
paths:
- pathType: Prefix #基于以 / 分隔的 URL 路径前缀匹配
path: /nginx(/|$)(.*) #（/|$）匹配/或者字符串结束 （.*）配置所有字符
backend:
service:
name: nginx
port:
number: 32230 #nginx-service的nodeport端口
- pathType: Prefix
path: /metabase(/|$)(.*)
backend:
service:
name: metabase2
port:
number: 32240 #metabase-service的nodeport端口
defaultBackend: #默认的页面也就是nginx80端口页面，如果以上规则都未匹配到将会转到以下服务
service:
name: metabase2
port:
number: 32240
[root@ecs-1213 nginx]# kubectl apply -f nginx_ingress.yaml
ingress.networking.k8s.io/nginx-app-ingress configured
[root@ecs-1213 nginx]# kubectl get ing
NAME CLASS HOSTS ADDRESS PORTS AGE
nginx-app-ingress <none> * 10.108.14.78 80 3d16h
[root@ecs-1213 nginx]# kubectl describe ingress nginx-app-ingress
Name: nginx-app-ingress
Namespace: default
Address: 10.108.14.78
Default backend: nginx:32230 (10.32.0.10:80)
Rules:
Host Path Backends
---- ---- --------
*
/nginx(/|$)(.*) nginx:32230 (10.32.0.10:80)
/metabase(/|$)(.*) metabase2:32240 (10.32.0.8:3000)
Annotations: kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/rewrite-target: /$2
nginx.ingress.kubernetes.io/use-regex: true
Events: <none>
[root@ecs-1213 nginx]# kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller NodePort 10.108.14.78 <none> 80:30343/TCP,443:30600/TCP 3d16h
ingress-nginx-controller-admission ClusterIP 10.108.133.238 <none> 443/TCP 3d16h
[root@ecs-1213 nginx]#[root@ecs-1213 nginx]# curl http://10.108.14.78:80/nginx/
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Search</title>
<link rel="stylesheet" href="foliant_elasticsearch.css">
<script src="foliant_elasticsearch.js"></script>
</head>
<body class="foliant_elasticsearch">
<h1>Kunpeng Search</h1>
<div>
<input id="foliant_elasticsearch_input" type="text" oninput="performSearch(this.value);">
</div>
<div id="foliant_elasticsearch_total"></div>
<div id="foliant_elasticsearch_results"></div>
</body>
</html>
[root@ecs-1213 nginx]# curl http://1.1.1.1/nginx/
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Search</title>
<link rel="stylesheet" href="foliant_elasticsearch.css">
<script src="foliant_elasticsearch.js"></script>
</head>
<body class="foliant_elasticsearch">
<h1>Kunpeng Search</h1>
<div>
<input id="foliant_elasticsearch_input" type="text" oninput="performSearch(this.value);">
</div>
<div id="foliant_elasticsearch_total"></div>
<div id="foliant_elasticsearch_results"></div>
</body>
</html>
[root@ecs-1213 nginx]# kubectl edit ingress nginx-app-ingress
ingress.networking.k8s.io/nginx-app-ingress edited
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: nginx-app-ingress
annotations:
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/use-regex: "true"
nginx.ingress.kubernetes.io/rewrite-target: /$2
spec:
rules:
- host: haha.online #增加域名设置
http:
paths:
- pathType: Prefix
path: /nginx(/|$)(.*)
backend:
service:
name: nginx
port:
number: 32230
- pathType: Prefix
path: /metabase(/|$)(.*)
backend:
service:
name: metabase2
port:
number: 32240
defaultBackend:
service:
name: nginx
port:
number: 32230
[root@ecs-1213 nginx]# kubectl get ing
NAME CLASS HOSTS ADDRESS PORTS AGE
nginx-app-ingress <none> haha.online 10.108.14.78 80 3d16h

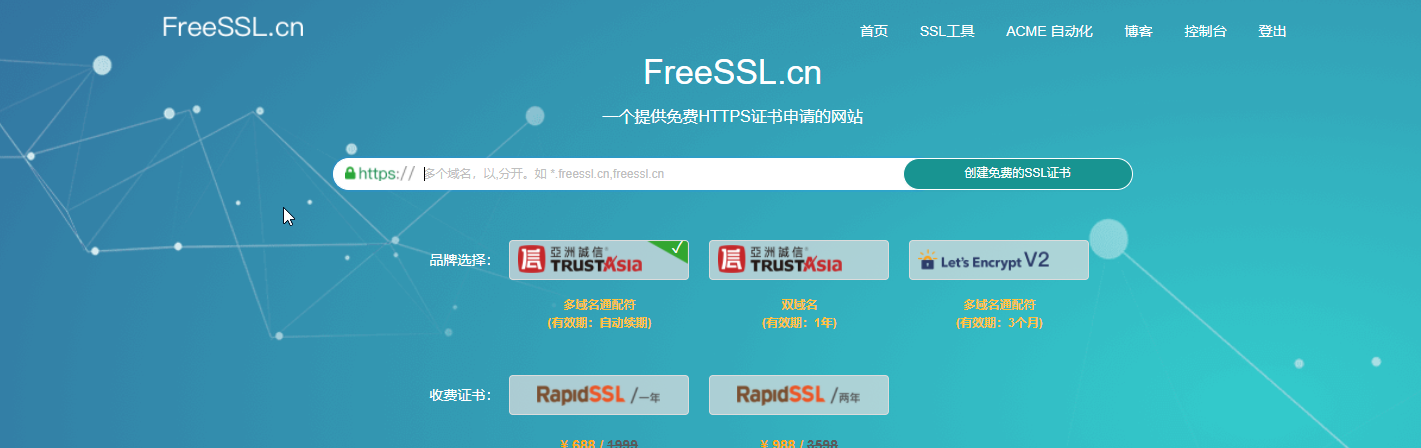

curl https://gitcode.net/cert/cn-acme.sh/-/raw/master/install.sh?inline=false | sh -s email=my@example.com

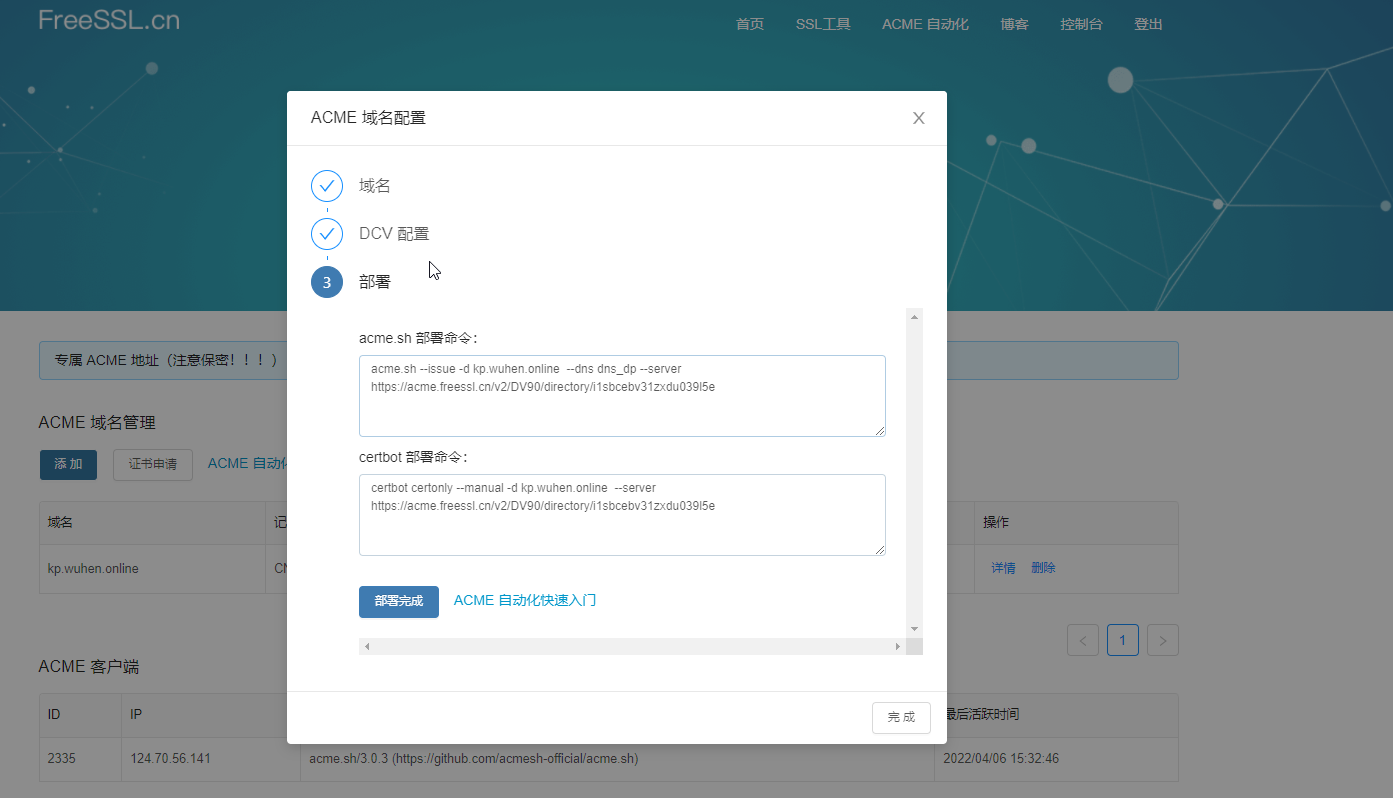

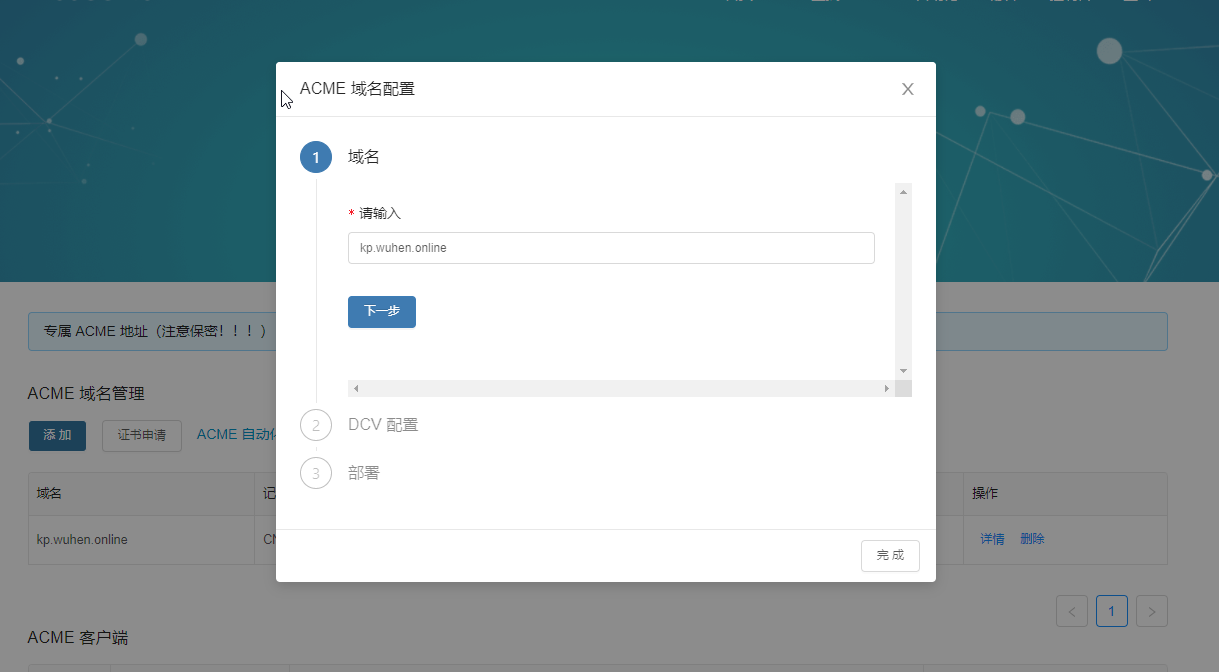

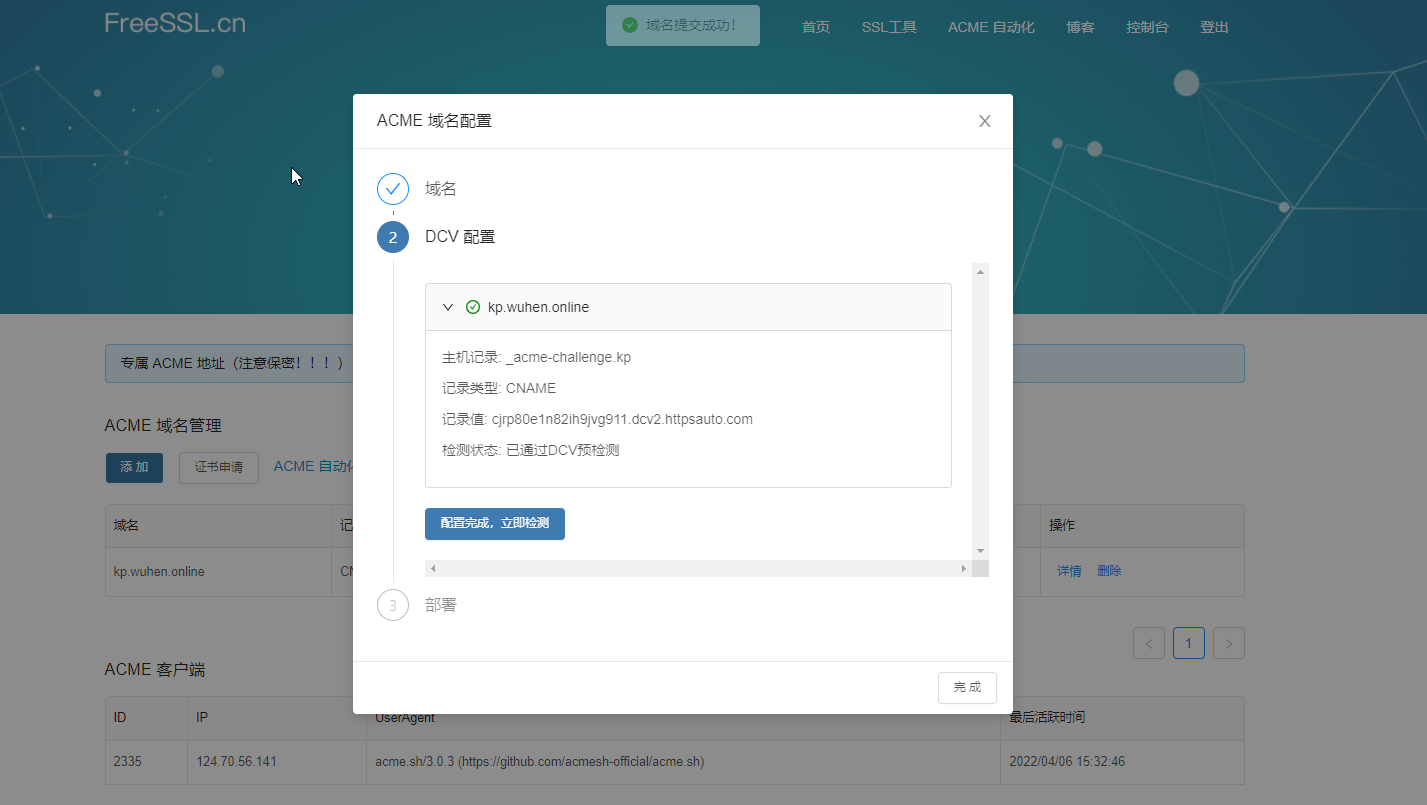

acme.sh --issue -d haha.online --dns dns_dp --server https://acme.freessl.cn/v2/DV90/directory/i1sbcebv31zxdu039l5e
[root@ecs-1213 nginx]# kubectl create secret tls haha.online --cert=/root/.acme.sh/haha.online/haha.online.cer --key=/root/.acme.sh/haha.online/haha.online.key
secret/haha.online created
[root@ecs-1213 nginx]# kubectl get secret
NAME TYPE DATA AGE
default-token-gqq4x kubernetes.io/service-account-token 3 114d
haha.online kubernetes.io/tls 2 15s
[root@ecs-1213 nginx]# cat nginx_ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: nginx-app-ingress
annotations:
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/use-regex: "true"
nginx.ingress.kubernetes.io/rewrite-target: /$2
nginx.ingress.kubernetes.io/ssl-redirect: "false" #关闭强制https的定向访问
spec:

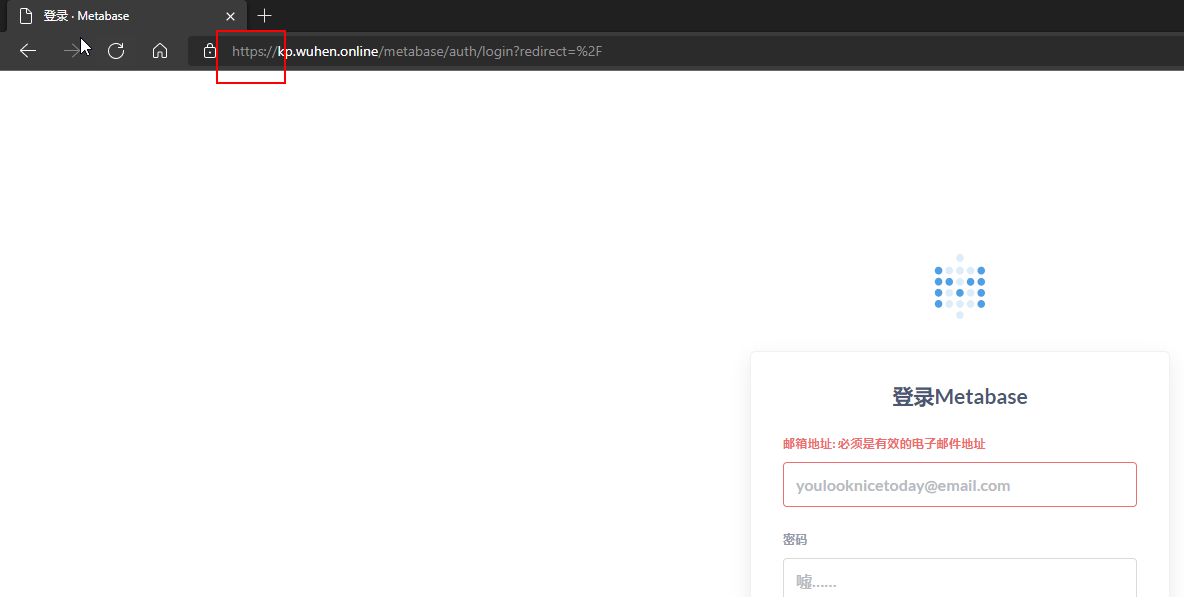

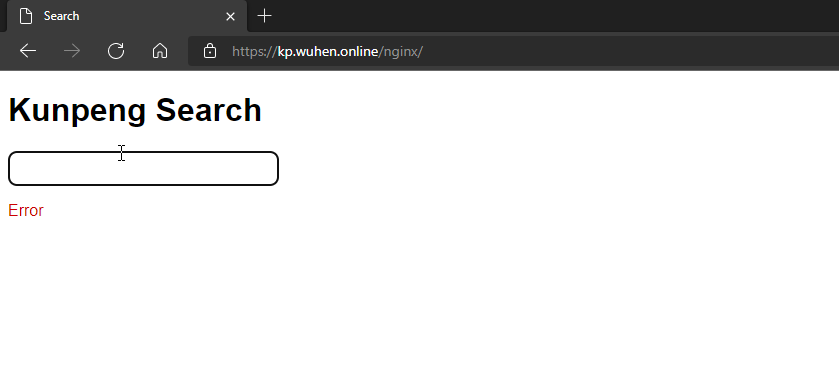

tls: #配置tls
- hosts:
- haha.online #域名
secretName: haha.online #secret资源名称
rules:
- host: haha.online
http:
paths:
- pathType: Prefix
path: /nginx(/|$)(.*)
backend:
service:
name: nginx
port:
number: 32230
- pathType: Prefix
path: /metabase(/|$)(.*)
backend:
service:
name: metabase2
port:
number: 32240
defaultBackend:
service:
name: nginx
port:
number: 32230
apiVersion: v1
kind: ConfigMap
metadata:
labels:
app.kubernetes.io/component: controller
app.kubernetes.io/instance: ingress-nginx
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
app.kubernetes.io/version: 1.1.2
helm.sh/chart: ingress-nginx-4.0.18
name: ingress-nginx-controller
namespace: ingress-nginx
data:
allow-snippet-annotations: "true" #该功能开启了在ingress配置文件中annotations的server-snippet写法，表示可以直接使用该字段插入到nginx—server块的配置
whitelist-source-range: 'x.x.x.x/24,x.x.x.x' #白名单
block-cidrs: 'x.x.x.x/24,x.x.x.x' #黑名单
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: metabase-ingress
namespace: service
annotations:
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/use-regex: "true"
nginx.ingress.kubernetes.io/rewrite-target: /$2
nginx.ingress.kubernetes.io/server-snippet: |-
deny 121.4.51.168;
allow all;
spec:
rules:
- host:
http:
paths:
- path: /m(/|$)(.*)
pathType: Prefix
backend:
service:
name: metabase
port:
number: 3000
nginx.ingress.kubernetes.io/server-snippet: |-
allow 121.4.51.168;
deny all;
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: metabase-ingress
namespace: service
annotations:
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/use-regex: "true"
nginx.ingress.kubernetes.io/rewrite-target: /$2
nginx.ingress.kubernetes.io/whitelist-source-range: 'x.x.x.x/24,x.x.x.x' #白名单
nginx.ingress.kubernetes.io/block-cidrs: 'x.x.x.x/24,x.x.x.x' #黑名单
spec:
rules:
- host:
http:
paths:
- path: /m(/|$)(.*)
pathType: Prefix
backend:
service:
name: metabase
port:
number: 3000

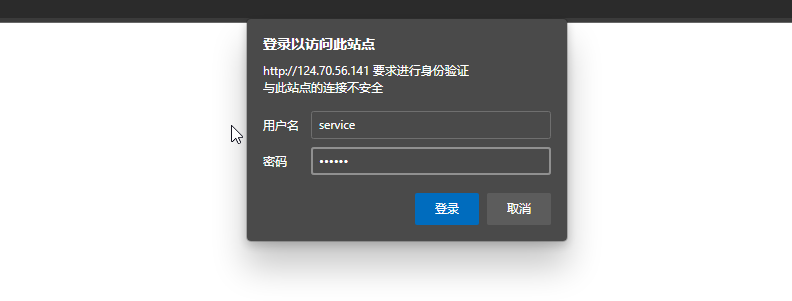

[root@k8s-master01 ingress]# htpasswd -c auth service
New password: 123456
Re-type new password: 123456
Adding password for user service
[root@k8s-master01 ingress]# ls
auth tls.cert tls.key
[root@k8s-master01 ingress]# cat auth
service:$apr1$UDKoFAUq$kPM0AaEB.qTEzzwB1SHSC.
[root@k8s-master01 ingress]# kubectl create secret generic basic-auth --from-file=auth -n service
secret/basic-auth created

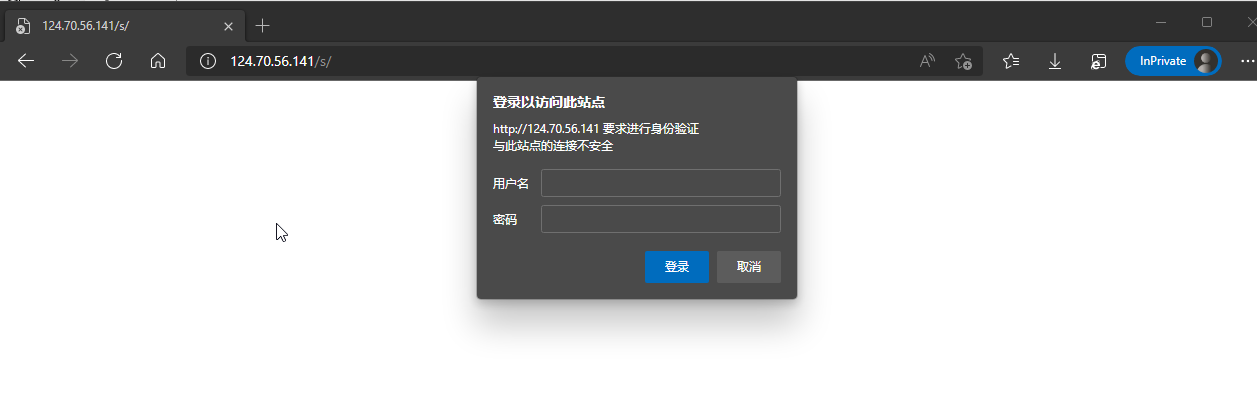

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress1
namespace: service
annotations:
kubernetes.io/ingress.class: "nginx"
nginx.ingress.kubernetes.io/use-regex: "true"
nginx.ingress.kubernetes.io/rewrite-target: /$2
nginx.ingress.kubernetes.io/auth-realm: Need to longin #需要登录认证
nginx.ingress.kubernetes.io/auth-secret: basic-auth #认证的secret名称
nginx.ingress.kubernetes.io/auth-type: basic #基本认证类型
spec:
rules:
- host:
http:
paths:
- path: /s(/|$)(.*)
pathType: Prefix
backend:
service:
name: nginx
port:
number: 80
defaultBackend:
service:
name: gitea
port:
number: 3000

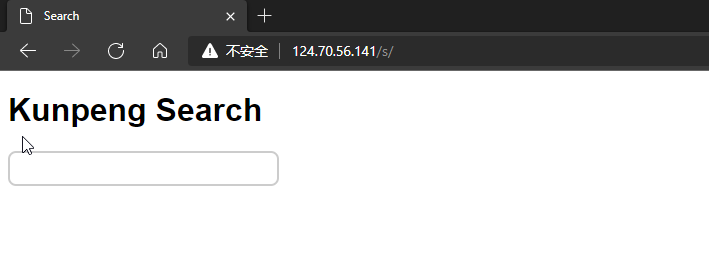

[root@ecs-arm-k8s-master01 shilitao]# kubectl apply -f ingress.yaml
ingress.networking.k8s.io/ingress1 configured
